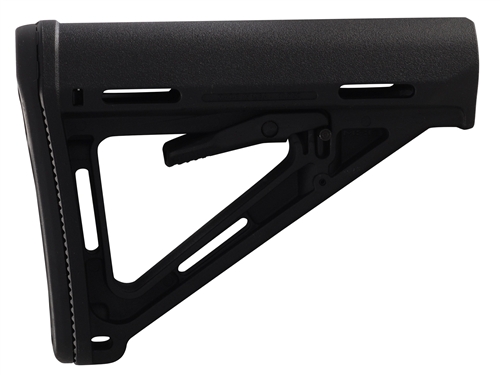

Magpul MOE Carbine Stock Mil-Spec Model Black
The Magpul MOE Carbine Stock Mil-Spec Model Black (Magpul Original Equipment) is a drop-in replacement buttstock for AR15/M16 carbines using mil-spec sized receiver extension tubes. Designed for light, fast action the streamlined A-frame profile avoids snagging and shields the release latch to prevent accidental activation. The Mil-Spec Model includes a standard 0.30″ rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.
Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others (please see the note below).
Sloping cheek weld combines a slim profile with user comfort.
Shielded release latch prevents snagging and accidental operation.
Premium chrome-silicon lock spring provides positive locking and long service life.
Side mounting slots accept optional cheek risers for NON-AR15/M16 applications.
Removable 0.30″ Rubber Butt-Pad offers an anti-slip surface and increases impact protection.
Compatible with Magpul ASAP®, ASAP®-QD, and other receiver-mount sling attachments.
Rear/Bottom – 1.25″ sling loops.
Toe – Lanyard hole for custom para-cord rigs
MOE, Mil-Spec (stock configuration)
Weight: 0.50 lb.
Weight, w/ Rec. Extension: 0.75 lb.
Length, Maximum: 6.90 in.
LOP Adjustment Range: 3.25 in.
LOP, M4 Collapsed: 10.70 in.
LOP, M4 Extended: 13.95 in.
NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec size extension on your rifle, make sure to order the Commercial-Spec MOE.
If you have one of the uncommon military tubes with an extended slant-back, along with the Mil-Spec MOE you will also need to order the Extended Rubber Butt-Pad, 0.55″ (sold separately).
* Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.
